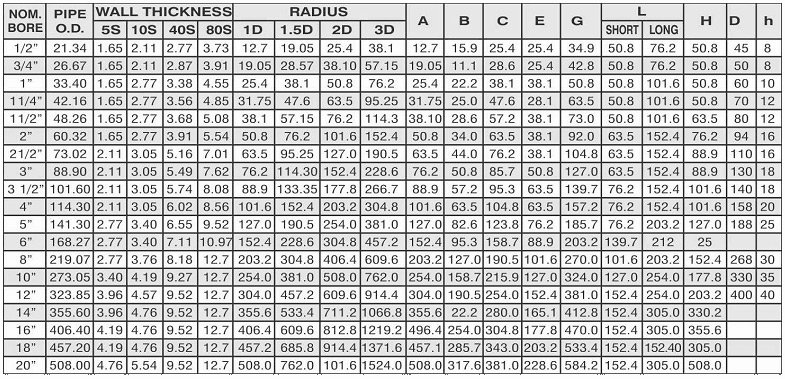

STAINLESS STEEL, PIPE DIMENSION AS PER ASTM & WEIGHT - KG PER MTR. (ANSI B36.19)
STANDARDS :
All dimensions are in mm and confirm to ABSI B 16.9 and MSS SP-43 where applicable - Dimensional tolerance are in accordance with ANSI B 16.9 M.S.S. SP 43 Where applicable.
RADIUS :
Radius of Short Radius Elbow is 1 times nominal pipe diameter, Radius of Long Radius Elbows is 11/2 time nominal pipe diameter
